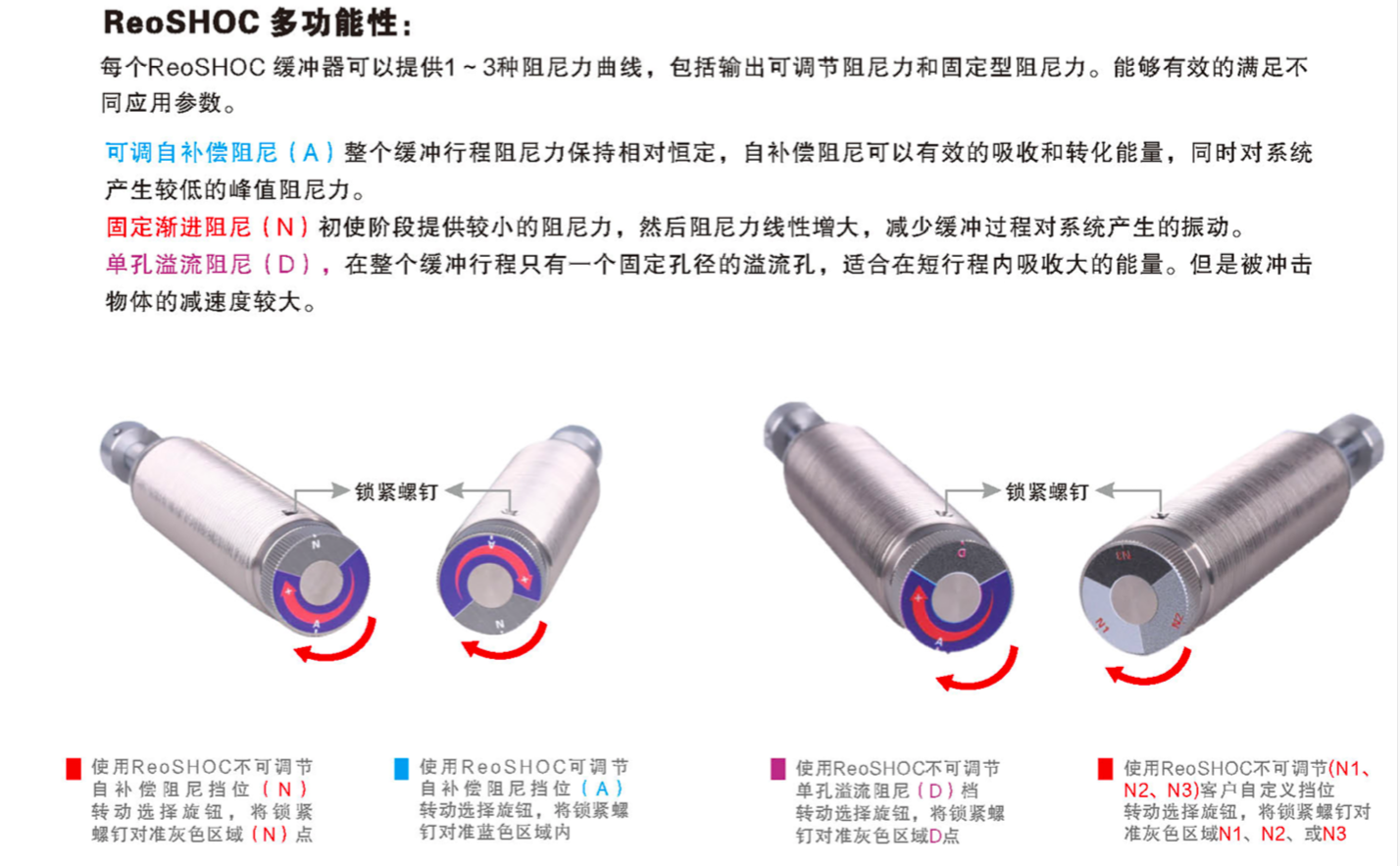

*The damping can be changed by adjusting the bottom knob to meet various working conditions.
*The outer cylinder body is of full thread structure, which increases the surface area, facilitates heat dissipation and installation.

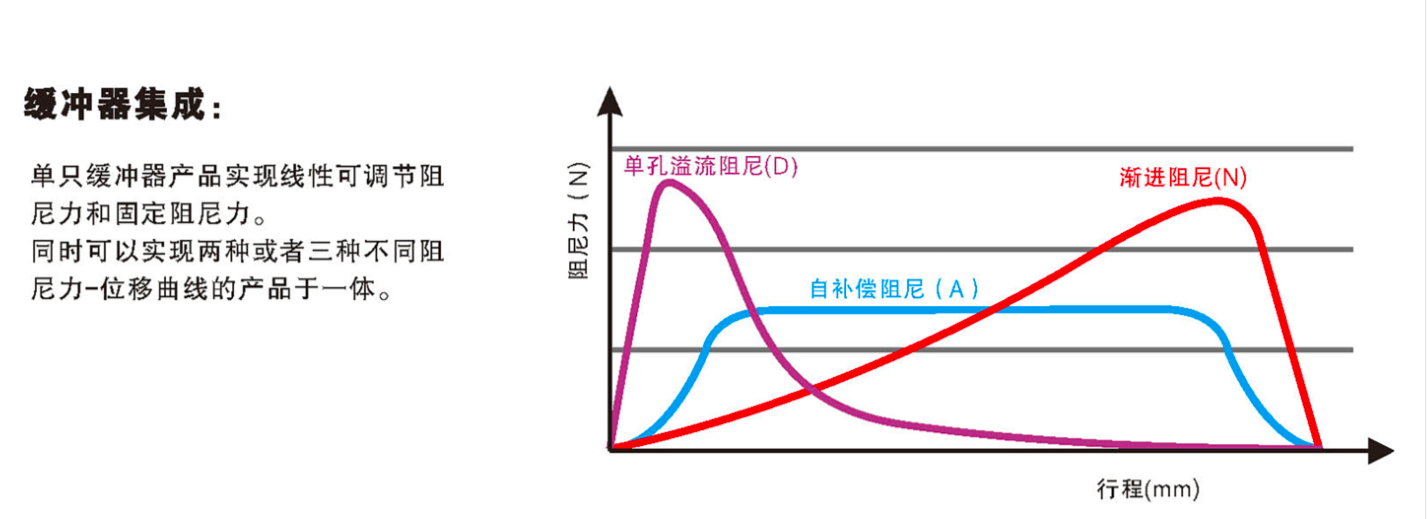

*Original patented design: the same product can achieve more than 2 damping curves and be applied to a variety of working conditions.
*Special damping oil and seals are used to meet the application temperature of - 40 ° C ~ 100 ° C.
*A variety of mounting accessories are optional, such as nuts, limit sleeves, flanges, lateral force adapters, steel caps, etc.
|
Model |
stroke (mm) |
maximum absorbed energy per time (Nm/C) |
External thread |
total length（mm） |
|
RDA080 |
6 |
3.0 |
M8x 1.0 |
47 |
|
RDA100 |
7 |
6.0 |
M10x 1.0 |
64 |
|
RDA150 |
10 |
10.0 |
M12x 1.0 |
75 |
|
RDAL150 |
10 |
10.0 |
M12x 1.0 |
75 |
|
RDA200 |
12 |
26.0 |
M14x 1.0 |
92 |
|
RDAL200 |
12 |
26.0 |
M14x 1.0 |
92 |
|
RDA210 |
12 |
26.0 |
M14x 1.5 |
92 |
|
RDAL210 |
12 |
26.0 |
M14x 1.5 |
92 |
|
RDA225 |
12 |
28.0 |
M16x 1.5 |
92 |
|
RDAL225 |
12 |
28.0 |
M16x 1.5 |
92 |
|
RDA300 |
15 |
90.0 |
M20x 1.5 |
101 |
|
RDAL300 |
15 |
90.0 |
M20x 1.5 |
101 |
|
RDA325 |
25 |
110.0 |
M20x 1.5 |
135 |
|
RDAL325 |
25 |
110.0 |
M20x 1.5 |
135 |
|
RDA350 |
25 |
120.0 |
M25x 1.5 |
129 |
|
RDAL350 |
25 |
120.0 |
M25x1.5 |
129 |
|
RDA360 |
40 |
330.0 |
M25x 1.5 |
172 |
|
RDAL360 |
40 |
330.0 |
M25x 1.5 |
172 |
|
RDA375 |
25 |
120.0 |
M27x 3.0 |
129 |
|
RDAL375 |
25 |
120.0 |
M27x3.0 |
129 |
|
RDA415 |
25 |
195.0 |
M33x 1.5 |
149.5 |
|
RDAL415 |
25 |
195.0 |
M33x 1.5 |
149.5 |
|
RDA425 |
50 |
385.0 |
M33x 1.5 |
214 |
|
RDAL425 |
50 |
385.0 |
M33x 1.5 |
214 |
|
RDA515 |
25 |
210.0 |
M36x 1.5 |
149.5 |
|
RDAL515 |
25 |
210.0 |
M36x 1.5 |
149.5 |
|
RDA525 |
50 |
395.0 |
M36x 1.5 |
214 |
|
RDAL525 |
50 |
395.0 |
M36x 1.5 |
214 |
|
RDA1525 |
25 |
367.0 |
M42x 1.5 |
144 |
|
RDAL1525 |
25 |
367.0 |
M42x 1.5 |
144 |
|
RDA1550 |
50 |
735.0 |
M42x 1.5 |
195 |
|
RDAL1550 |
50 |
735.0 |
M42x 1.5 |
195 |
|
RDA1575 |
75 |
1130.0 |
M42x 1.5 |
246 |
|
RDAL1575 |
75 |
1130.0 |
M42x 1.5 |
246 |
|
RDA1625 |
25 |
375.0 |
M45x 1.5 |
144 |
|
RDAL1625 |
25 |
375.0 |
M45x 1.5 |
144 |
|
RDA1650 |
50 |
745.0 |
M45x 1.5 |
195 |
|
RDAL1650 |
50 |
745.0 |
M45x 1.5 |
195 |
|
RDA1675 |
75 |
1150.0 |
M45x 1.5 |
246 |
|
RDAL1675 |
75 |
1150.0 |
M45x 1.5 |
246 |
|
RDA2025 |
25 |
1050.0 |
M64x2.0 |
169 |
|
RDAL2025 |
25 |
1050.0 |
M64x2.0 |
169 |
|
RDA2050 |
50 |
1865.0 |
M64x2.0 |
226 |
|
RDAL2050 |
50 |
1865.0 |
M64x2.0 |
226 |
|
RDA2100 |
100 |
3730.0 |
M64x2.0 |
340 |
|
RDAL2100 |
100 |
3730.0 |
M64x2.0 |
340 |
|
RDA2150 |
150 |
5650.0 |
M64x2.0 |
460 |
|
RDA3050 |
50 |
2300.0 |
M85x2.0 |
245 |
|
RDAL3050 |
50 |
2300.0 |
M85x2.0 |
245 |
|
RDA3100 |
100 |
3700.0 |
M85x2.0 |
348 |
|
RDAL3100 |
100 |
3700.0 |
M85x2.0 |
348 |
|
RDA3150 |
150 |
7200.0 |
M85x2.0 |
469 |
|
RDA4050 |
50 |
3800.0 |
M115x2.0 |
313 |
|
RDAL4050 |
50 |
3800.0 |
M115x2.0 |
313 |
|
RDA4100 |
100 |
7800.0 |
M115x2.0 |
414 |
|
RDAL4100 |
100 |
7800.0 |
M115x2.0 |
414 |
|
RDA4150 |
150 |
12000.0 |
M115x2.0 |
516 |
|
RDA4200 |
200 |
16000.0 |
M115x2.0 |
643 |
|
RDA4250 |
250 |
20000.0 |
M115x2.0 |
745
|
