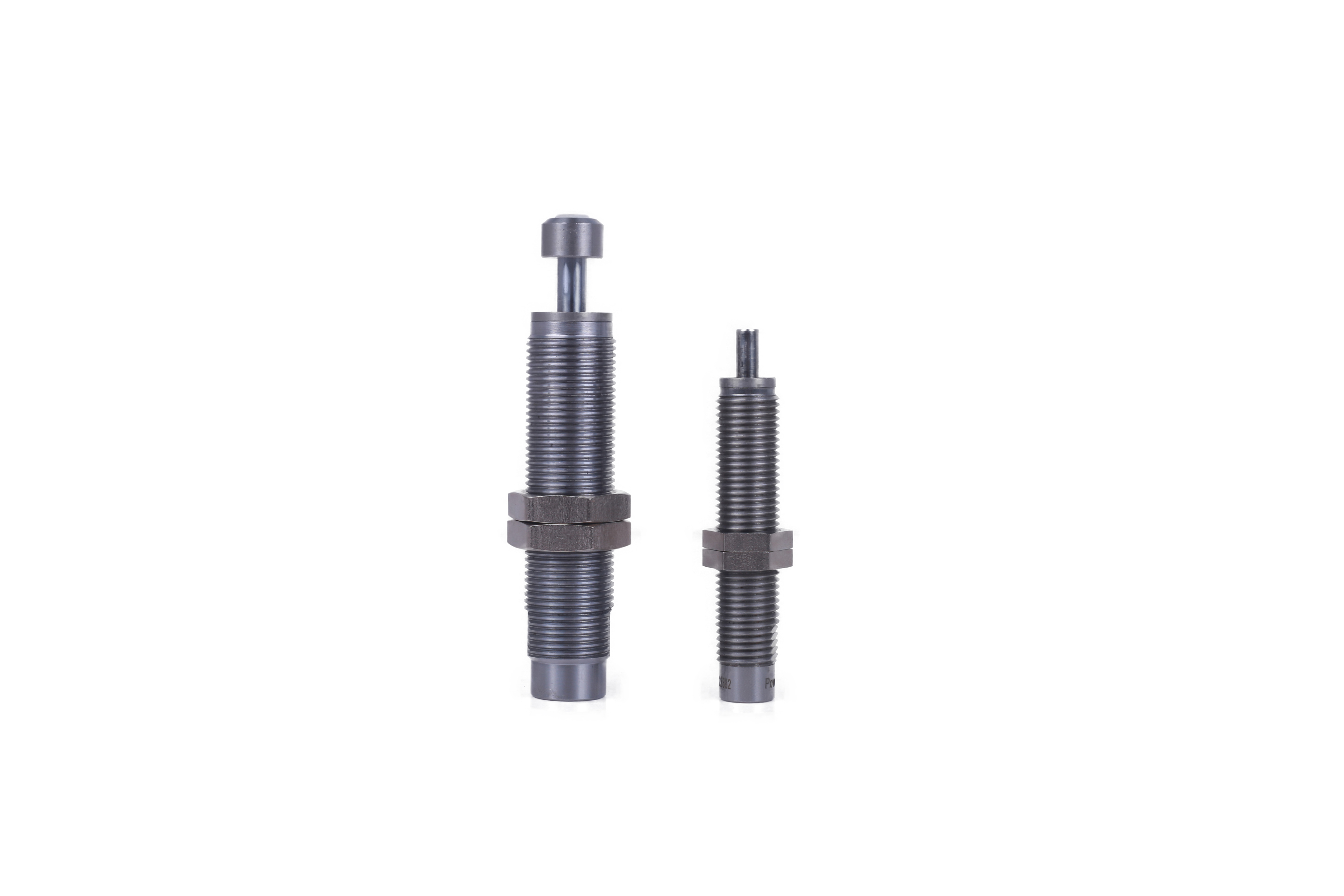

*Resistance tamper proof outer cylinder structure design ensures stable and consistent damping curve.
*The outer cylinder body is of full thread structure, which increases the surface area, facilitates heat dissipation and installation.
*According to different application parameters, corresponding orifices are designed to ensure that the damping performance is more suitable for this working condition.
*Special damping oil and seals are used to meet the application temperature of - 40 ° C ~ 100 ° C.
*A variety of mounting accessories are optional, such as nuts, limit sleeves, flanges, lateral force adapters, steel caps, etc.
|
Model |
stroke (mm) |
maximum absorbed energy per time (Nm/C) |
External thread |
total length（mm） |
|
RDN080 - 1 /2/3 |
6 |
3 |
M8x 1.0 |
42 |
|
RDN100-1/2/3 |
7 |
10 |
M10x 1.0 |
59 |
|
RDN150 -1/2/3 |
10 |
18 |
M12x 1.0 |
59 |
|
RDN200 - 1 /2/3 |
12 |
35 |
M14x 1.0 |
96 |
|
RDN210 -1/2/3 |
12 |
35 |
M14x 1.5 |
96 |
|
RDN300 - 1 /2/3 |
15 |
110 |
M20x 1.5 |
118 |
|
RDN350 - 1 /2/3 |
25 |
120 |
M25x 1.5 |
129 |
|
RDN375 - 1 /2/3 |
25 |
130 |
M27X3.0 |
129 |
|
RDN400 - 1 /2/3 |
25 |
170 |
M30x 1.5 |
134 |
|
RDN415 -1 /2/3 |
25 |
195 |
M33x 1.5 |
143 |
|
RDN425 - 1 /2/3 |
50 |
385 |
M33x 1.5 |
210 |
|
RDN515 -1/2/3 |
25 |
215 |
M36x 1.5 |
143 |
|
RDN525 - 1 /2/3 |
50 |
395 |
M36x 1.5 |
210
|
