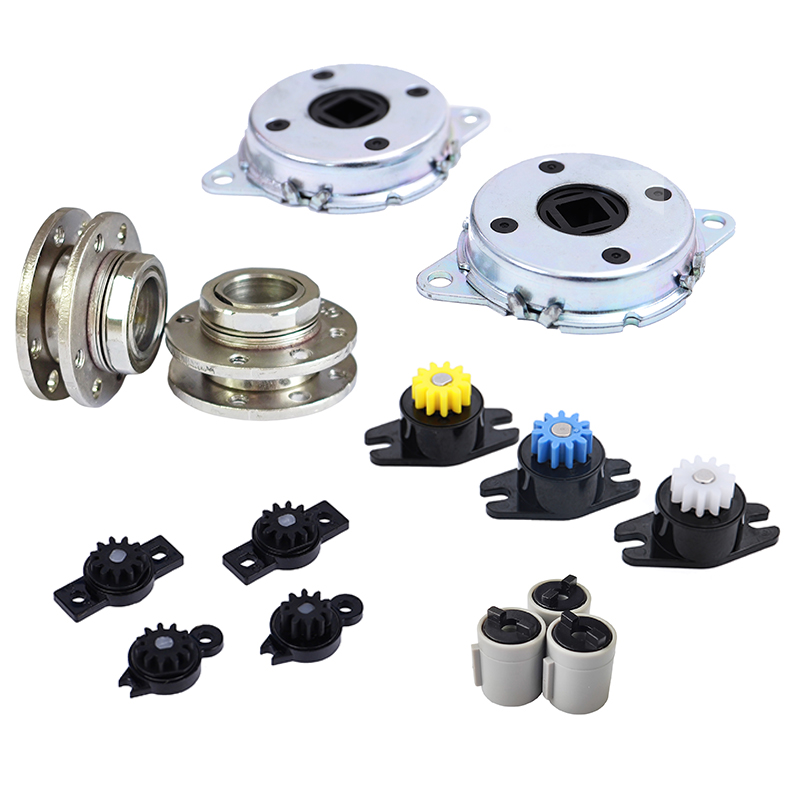

*A variety of types, such as gear wheel type, cylinder type, disk type, etc., can be selected and matched according to different occasions.
*High strength engineering plastics or alloy materials are used to ensure product strength.
*The wide range of damping from 10gfcm to 7Nm can meet the requirements of different working conditions.
*Special damping oil and seals are used to meet the application temperature of - 40 ° C ~ 80 ° C.
*For products of the same size, the damping size can be changed by changing the viscosity of the damping oil.
*The damping direction can be either unidirectional damping or bidirectional damping.
|
Model |
torque(gfcm / Kgfcm) |
direction |
Shaft diameter（mm） |
|
GRD10A |
20～100gfcm |
two-way |
10 |
|
GRD15XT |
30～300gfcm |
Bidirectional / forward / reverse |
15 |
|
GRD15B |
30～300gfcm |
Bidirectional / forward / reverse |
15 |
|
BRD12C |
300～800gfcm |
two-way |
12 |
|
BRD13.5 |
500～3000gfcm |
two-way |
13.5 |
|
BRD08A |
100～1000gfcm |
two-way |
8 |
|
DRT47E |
5 ± 20Kgfcm |
Bidirectional / forward / reverse |
47 |
|
HRT12SP01 |
2～70Kgfcm |
two-way |
12 |
|
HRT13SP01 |
2～20Kgfcm |
two-way |
13 |
|
HRT18SP02 |
1～25Kgfcm |
two-way |
18
|
